(A95 ceramics) |
|
Essential components |
95％Al2O3 |
|
Material characteristics
|
Density |
g/cm3 |
3.6 |
|
Water Absorption |
％ |
O |
|
Agglomeration temperature |
℃ |
1680 |
|
Physical characteristics
|
Hardness |
HV |
1500 |
|
Anti—Folding Strength |
Kgf/cm2 |
3000 |
|
Compressive Strength |
Kgf/cm2 |
25000 |
|
Tenacity |
Map.m3/2 |
3-4 |
|
Thermodynamic property
|
Highest application temperature |
℃ |
1450 |
|
Thermal expansion coefficient O-1000℃ |
/℃ |
8*10-6 |
|
Heat resistance |
T(℃) |
220 |
|
Thermal conductivity |
W/m.k(25-300℃) |
25 14 |
|
Electrical specification
|
Volume resistivity
|
20℃ |
>.cm |
>1012 |
|
100℃ |
1012-1013 |
|
300℃ |
>1010 |
|
Insulation breakdown intensity |
KV/mm |
18 |
|
Dielectric constant |
100MHz(E) |
9.5 |

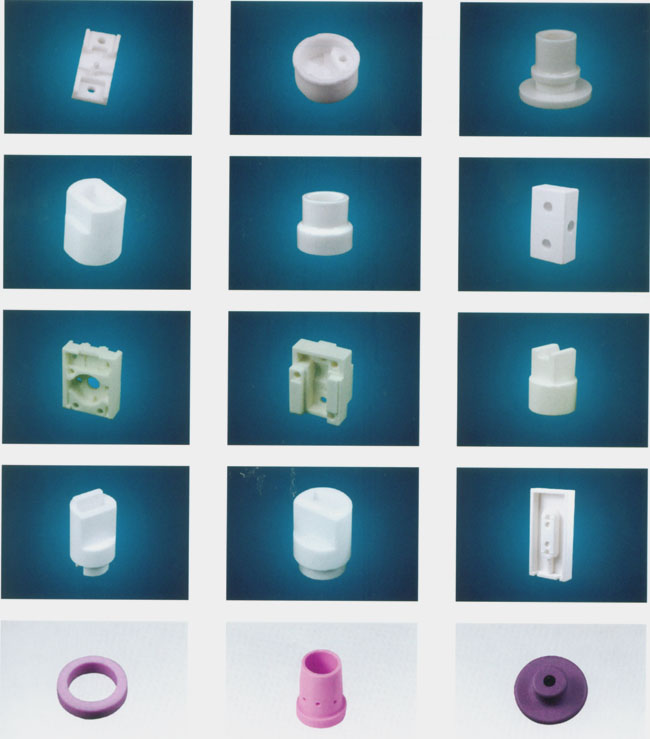

The 95 95 Al2O3 ceramics perform well in electric insulation and are widely used in heat controllers， heat protectors，electronic ceramics and other electrical fittings．
|
|
| |
| |
|
 |
